Private Build Series
As guitar players, we look for an instrument that feels like a natural extension of our body, a guitar that is a frictionless channel of creativity and rooted deeply in the rock scene of the 60s. A guitar that is unmatched in playability & versatility and that also offers timeless inspiration. The Helena is a result of collaboration with the talented master luthier Angelo van Merrienboer from Panucci Guitars.

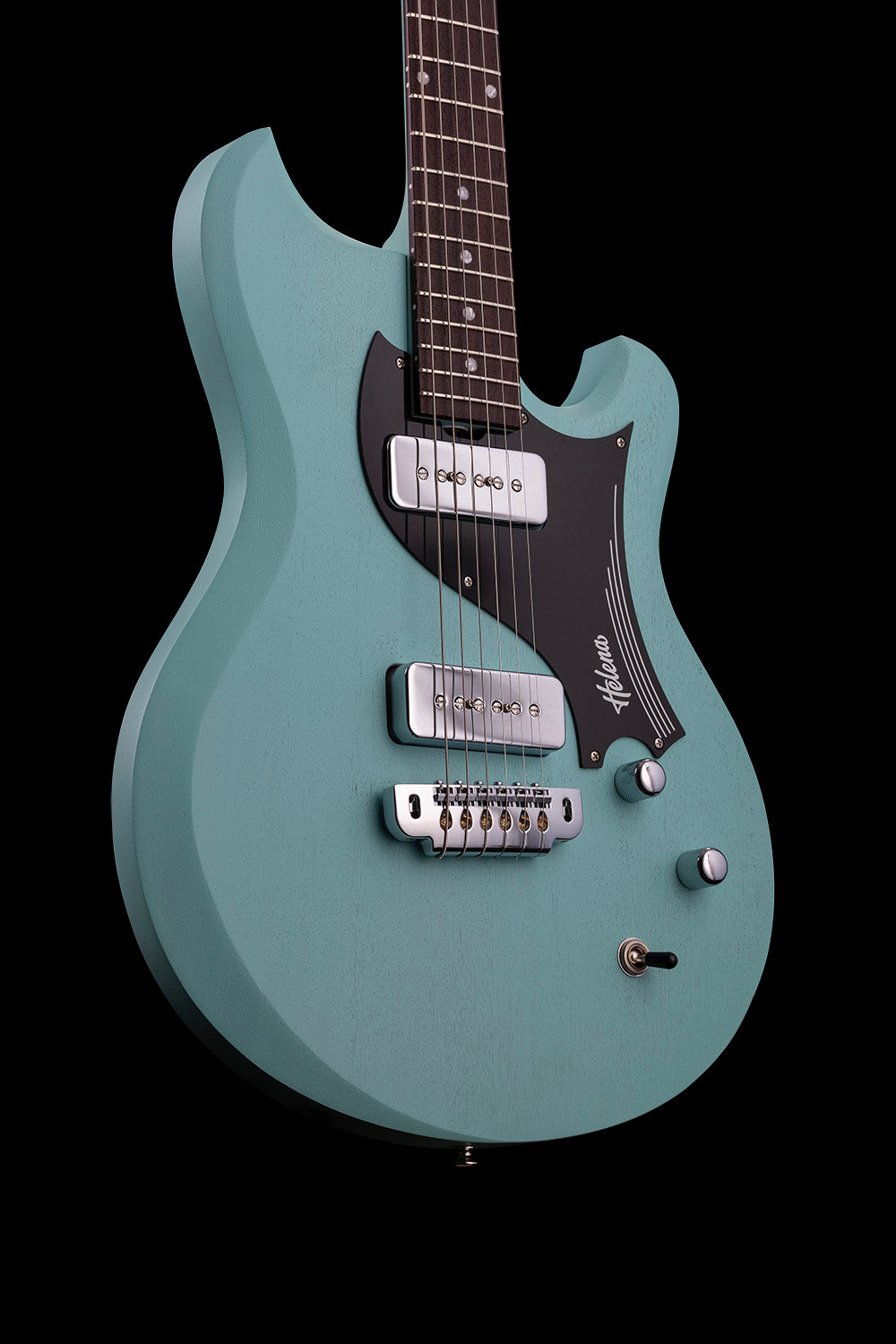

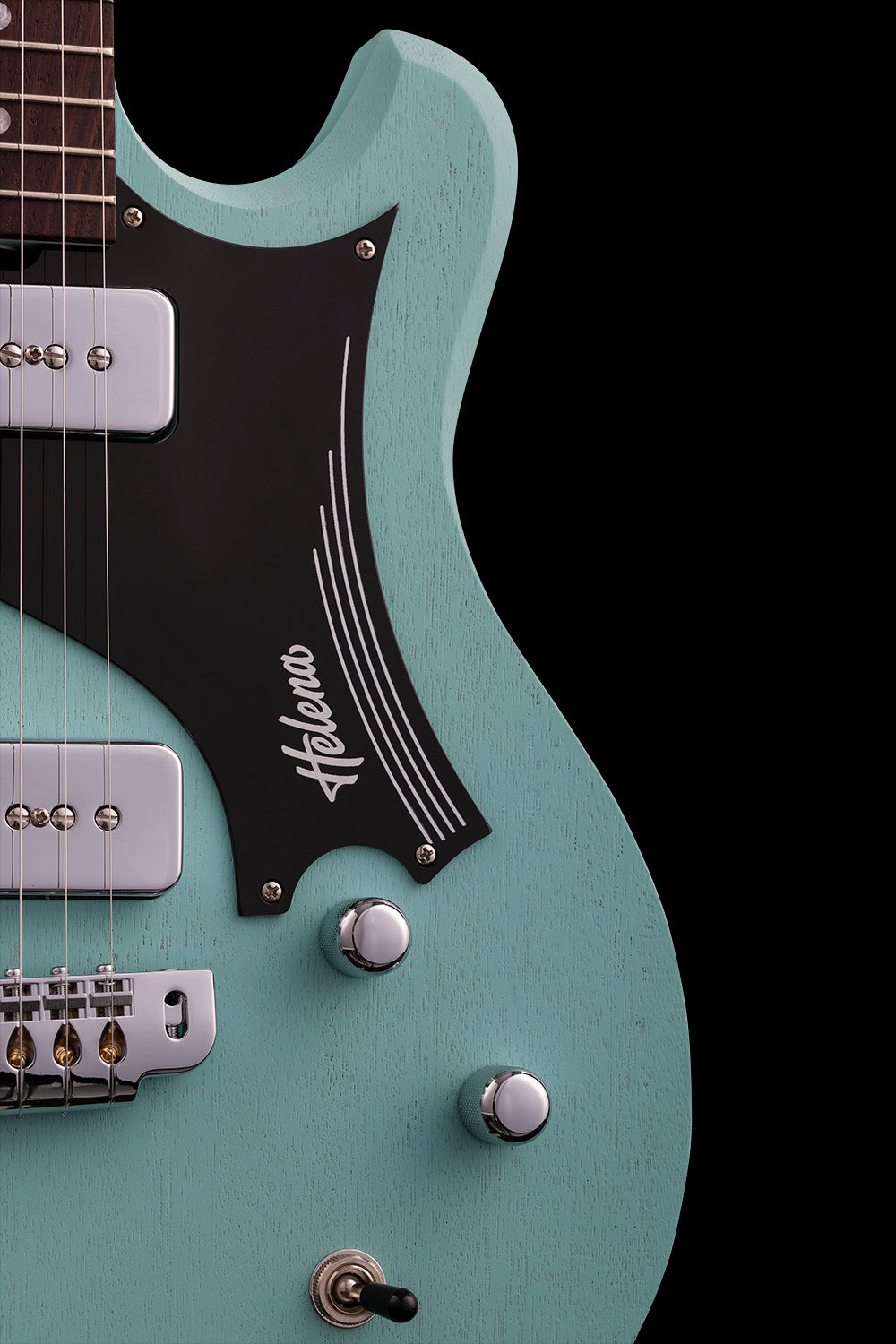

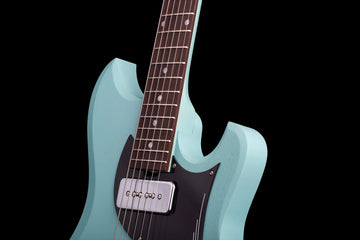

This Helena Baby Blue features a special light blue finish and a pair of our hand-wound P90s to compliment it. Additionally, it has an ABS black pickguard and a light one-piece mahogany body.
B&G Private Build Helena guitars are hand-built using both traditional and modern techniques that deliver a vintage feel, look and sound…straight out of the case.
Old meets new
We’ve applied our old-school guitar-building techniques and merged them with modern luthiery applications to create a guitar that produces a classic sound while providing modern playability

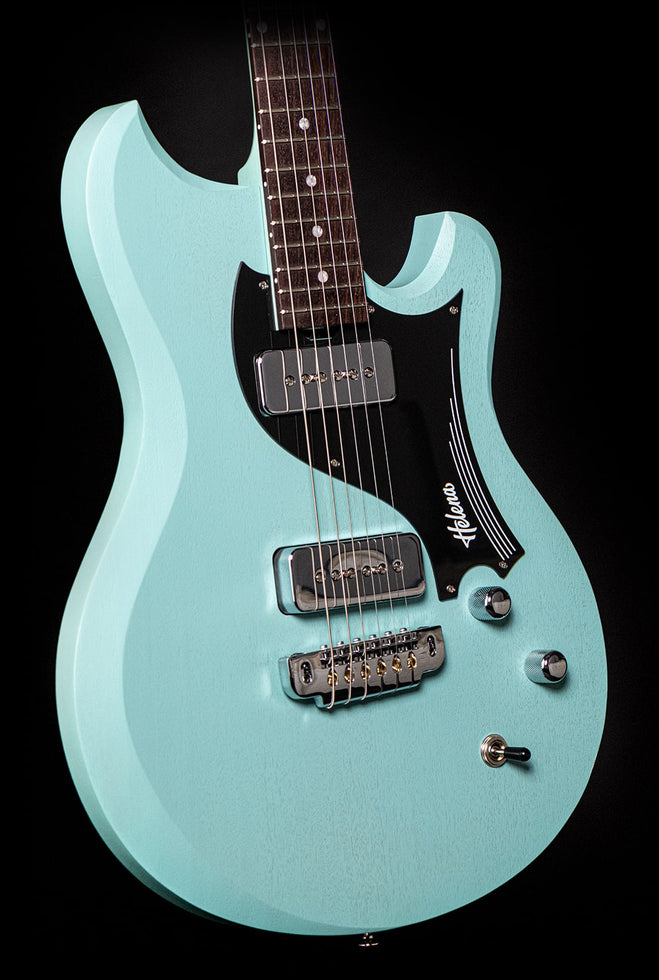

Solid one-piece genuine mahogany body
The body is made from one piece of Genuine Mahogany.
Traditional glues are used for the frets and fretboard. These types of glues crystallize like glass when dry, creating a substantially thinner layer between the different parts allowing for optimal string energy transfer…significantly better than modern synthetic glues.
One-way truss rod
Single, one-way truss rods are lighter and require a smaller channel in the neck. This building technique also demands neck woods that are perfectly aged, plus accurate installation of the truss rod. We only use this specific truss rod design for improved tone transfer and sustain.

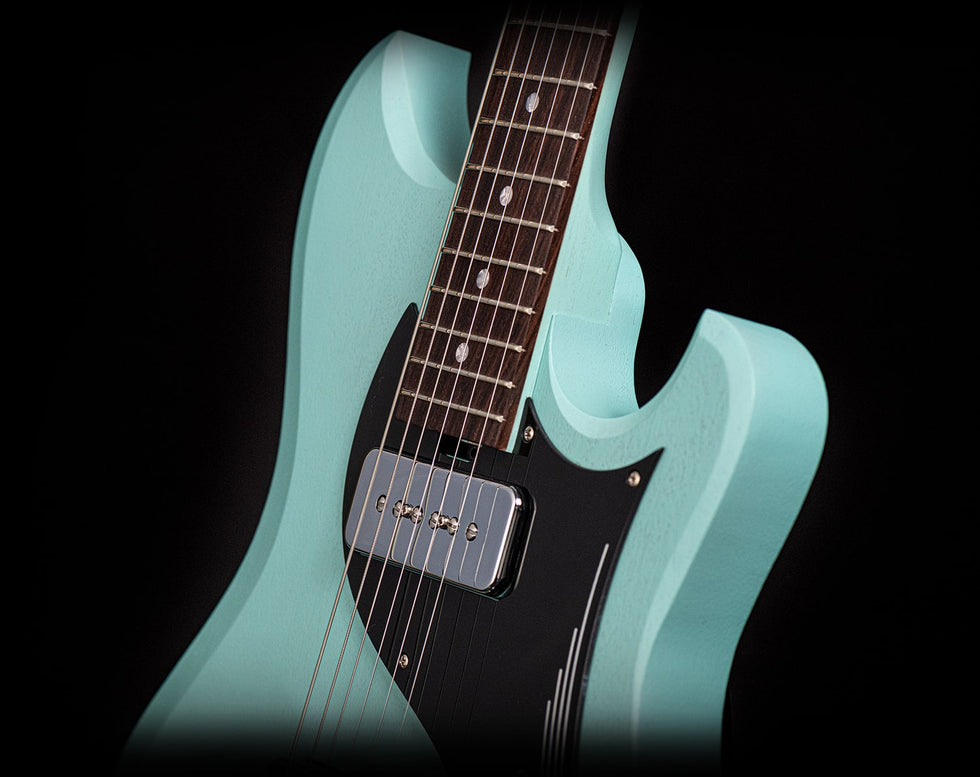

We use our Private Build pickups that have been developed in-house, to ensure that specific tone we wanted for our guitars. The Helena is packed with a set of 3 Single Coil Pickups and is wound by hand with AWG43 lacquered enamel copper, powered by in-house cast Alnico II and Alnico V magnets, and covered by our handmade brass lipstick covers.

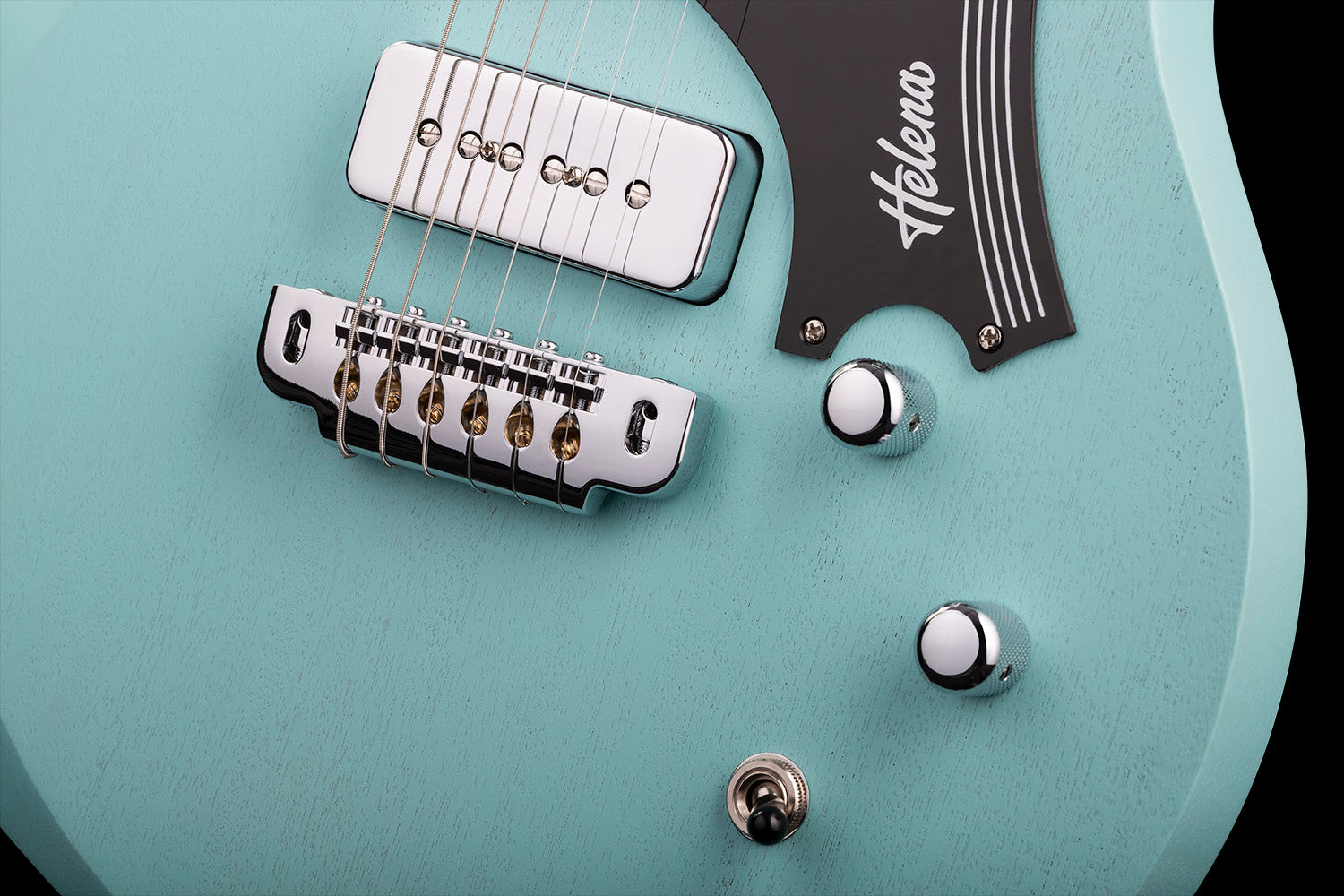

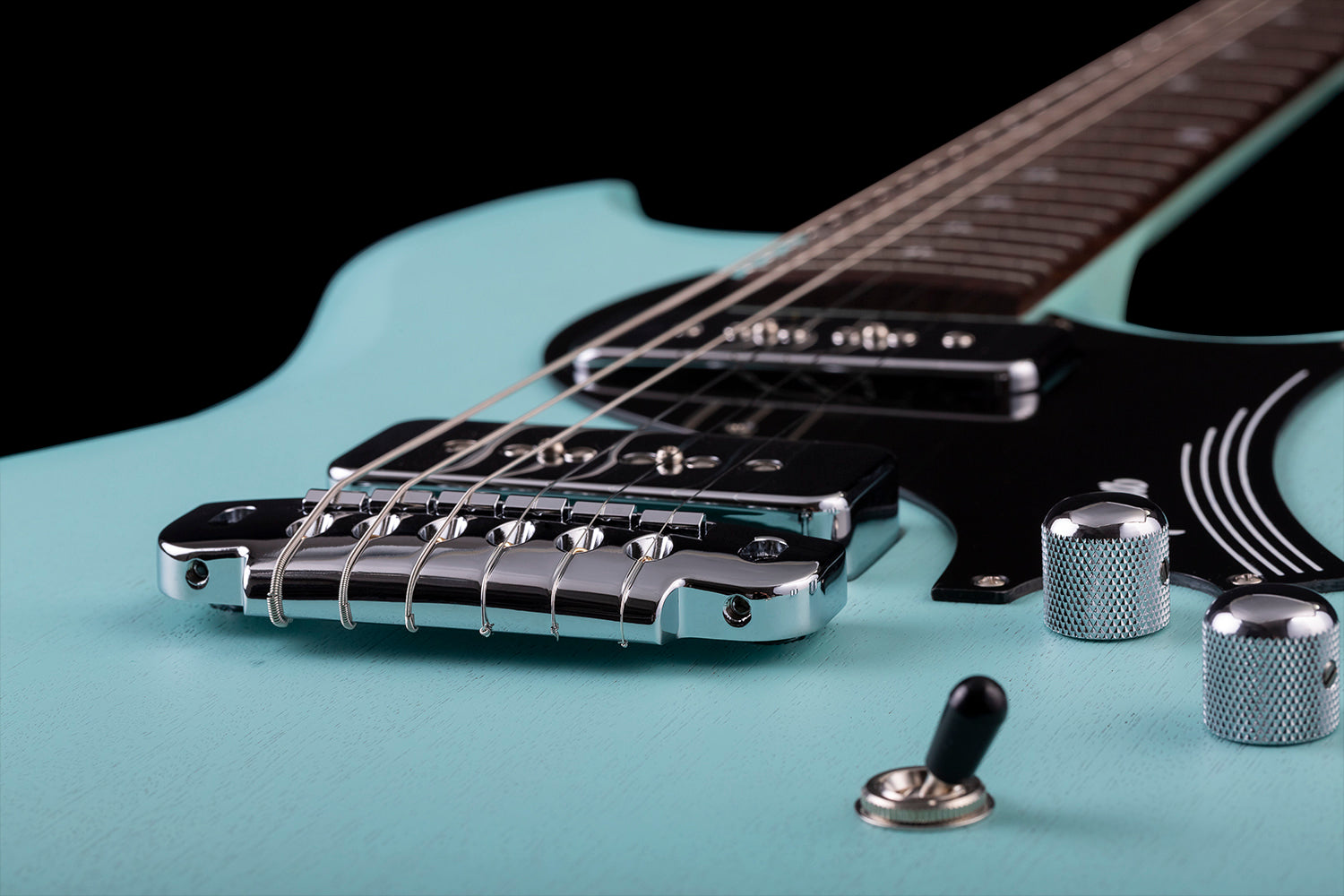

The Gotoh Bridge and Tuning Machines have been selected for their outstanding tone, functionality, and precision.
Unique scale length
As guitar players, we always look for that perfect tone and balance in our instrument. With this “sweet spot” 25 ⅛” (63.82 cm) scale length, we’ve found the solution to the tonal limitations of ubiquitous guitars with 24 ¾” and 25 1/2 “ scale lengths. This unique scale length is designed to provide the player with unmatched versatility, unique tones, and character; The tones are articulated and sweet, round but not muddy, sharp but not harsh, with a wide frequency range. This makes the Helena a workhorse for fingerstyle playing, arpeggios, rhythm, and solos using a new pallet of sonic colors.
50’s style wiring
This wiring impacts the taper of the volume control lending to less treble bleed as the volume is reduced and produces a cleaner more open sound.
Open pore nitrocellulose finish
We apply a thin coat of nitrocellulose which allows the wood to breathe and resonate, reflecting the artist’s passion for playing. This finish will age/relic fairly quickly & naturally to ensure improved tone over time.
Our commitment to a great playing experience covers every detail of a guitar.
Construction Solid Body
Shape B&G Helena
Body Length 45cm / 17.7”
Body Thickness 3.5cm / 1.3”
Body Width 33.5cm / 13.2”
Body 1 Piece Mahogany
Bridge Gotoh Wrap Around

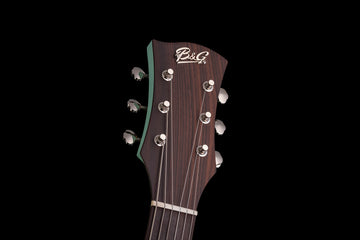

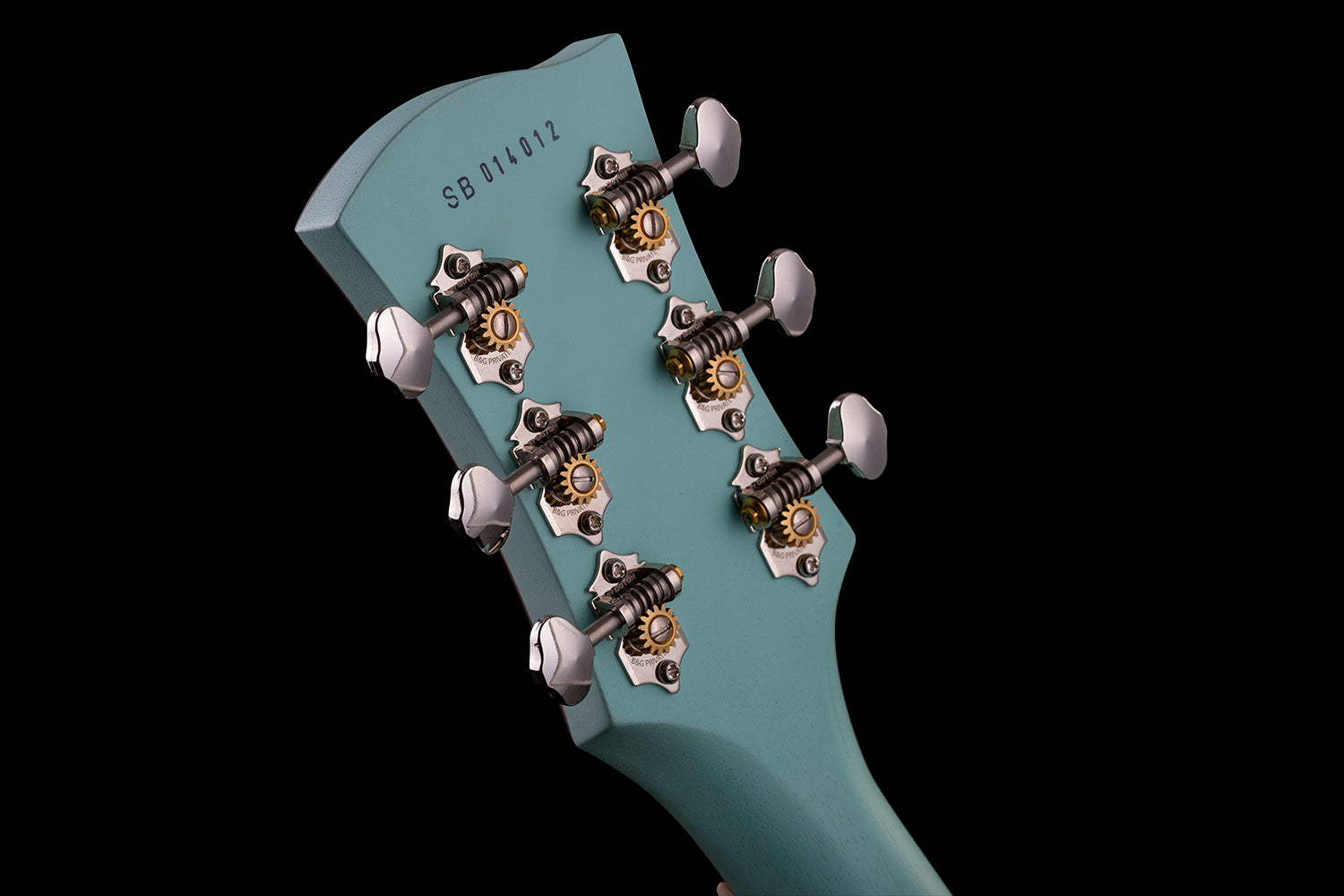

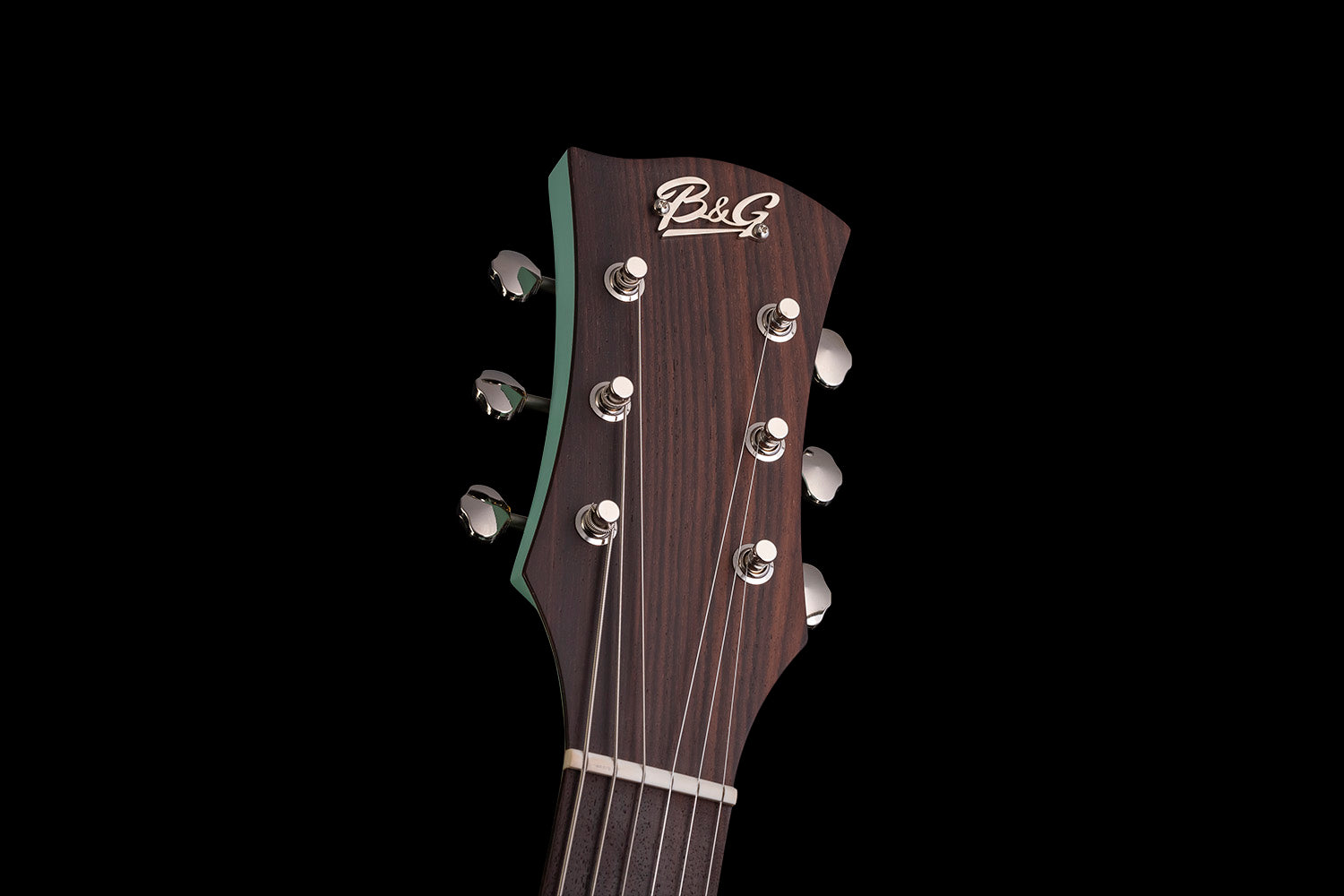

Tuning Machines Open Gear Tuners by Gotoh
Strings Ernie Ball 0.10-0.46
Wood One Piece Mahogany
Scale Length 25 1/8"
Fingerboard Radius 12"
Fret 1 Thickness 2.26 cm / .89”
Fret 12 Thickness 2.49cm / .98”

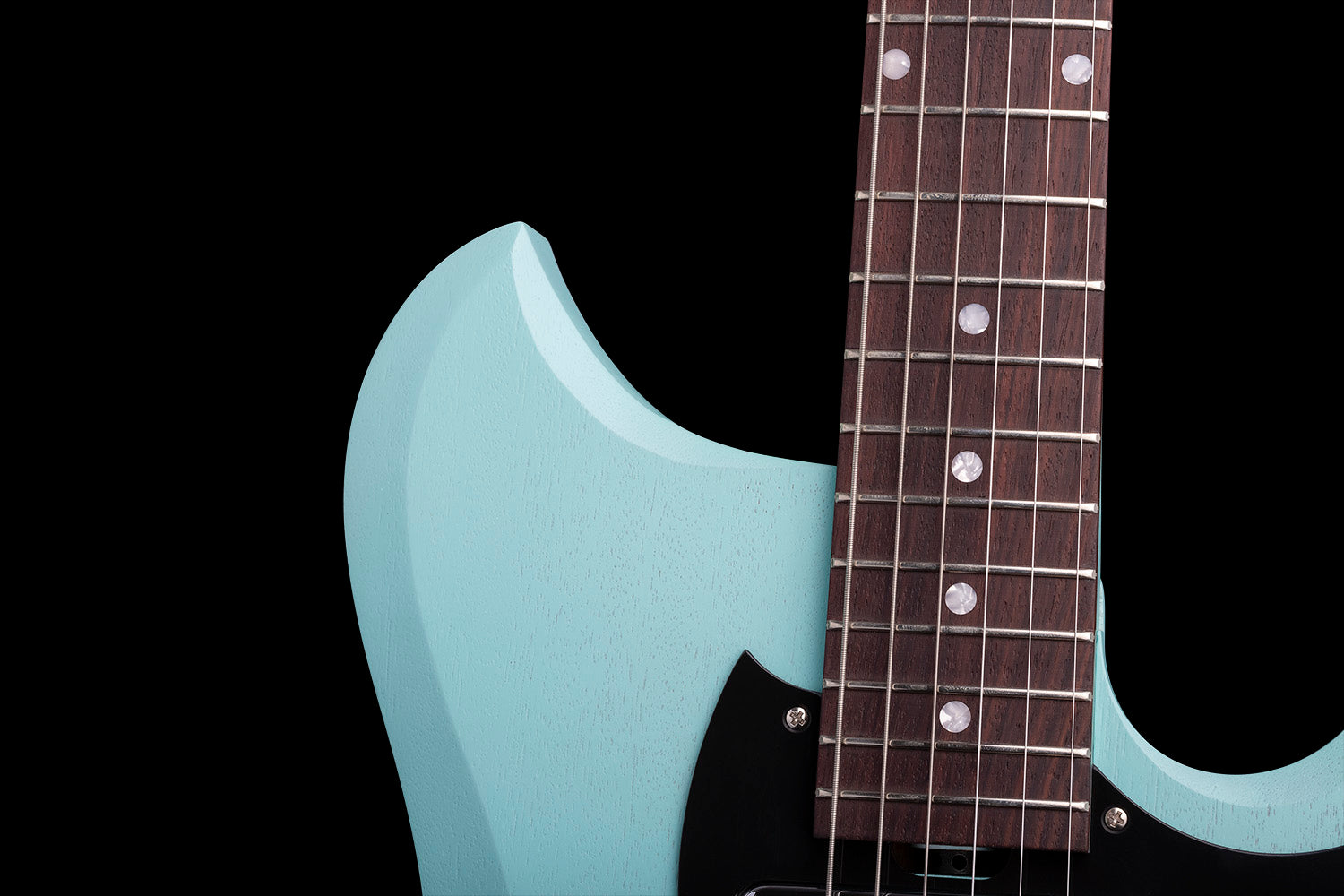

Fingerboard Indian Rosewood
Inlay Perloid Dot
Fretwire Nickel-Silver, Width 0.080", Crown 0.050"
Truss Rod One-way Spoke Wheel
Neck Shape Soft V
Nut Width 1.67” / 42.5 mm
Pickups B&G Hand-Wound P90s
Toggle Switch Switchcraft 3-way
Wiring 50s Style
Potentiometers CTS 500k
Output Jack Switchcraft
Total 2.9 - 3.4 kg / 6.4 - 7.5lbs.
Total 97 cm / 38.19 in.
Type Nitrocellulose - OpenPore Matte
